DSSV, FOSV & IBOP Valves

Drill Stem Safety Valves, Full Opening Safety Valves, & Inside Blow Out Preventer Valves

DSSV, FOSV & IBOP Valves are used to control fluid through the ID of wellbore tubulars. These valves have been the choice of well drilling and workover companies for more than 30 years. M&M Oil Tools is proud to announce their latest innovation, the patent pending PWC CARTRIDGE (TM MARK) that increases reliability, performance, integrity and makes field servicing of our kelly and safety valves even faster and easier. All valves are designed and built as H2S trim with NACE MR0175/ISO 15156.

No special tools are needed to remove or install the prestested cartridge.

M&M’s manually operated safety valves are designed to quickly stab into drillpipe, tubing or casing if a kick is encountered. Our remote actuated or manually operated kelly valves are installed at each end of the kelly, or below the top drive, to control flow from the wellbore and protect surface equipment from high pressure kicks. The DSSV/FOSV well control valve can also function as a mud saver valve preventing mud loss and hazardous rig floor conditions when tripping pipe.

These valves are available in one or two-piece construction. The compact one-piece design is ideally suited where space is at a premium or where handling weight is critical. Its smooth OD allows this valve to be run anywhere in the drill string. The two-piece design is available when larger internal diameters are desired. All valves are offered with a variety of threads including left-hand connections for upper Kelly applications that are matched to maintain drill string tensile strength capacity.

Mill certificates, test reports and Certificate of Conformance are provided with each valve.

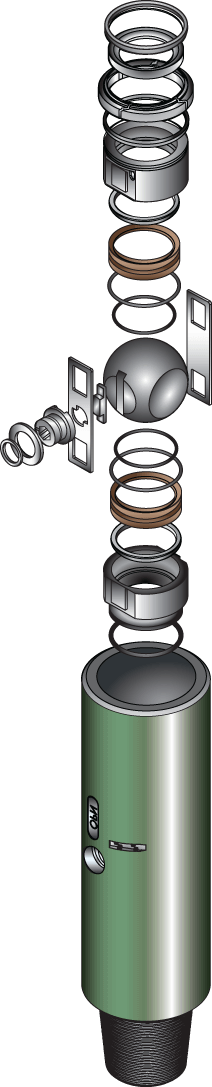

The PWC CARTRIDGE™ ball valve features precision positive quarter-turn rotational stops for the fully open and closed positions to prevent interference with tool passage or fluid erosion that occurs in competitive products. The bi-directional valve holds pressure from above or below. It also features soft and hard seats to provide enhanced sealing under low- and high-pressure conditions. Our unique cartridge design permits pressure to equalize across the upper seal and ball to load it against the downstream seal. This prevents trapping pressure across the ball and reduces the torque required to open the valve.

PWC CARTRIDGE™ is a trademark of M&M Oil Tools
