WELL CONTROL VALVES : H2S TRIM

Well Control Valves : H2S Trim

We Use the Right Materials, In the Right Application, For Consistent Durability, High Quality and Corrosion Resistance—Conforming with NACE MR0175/ISO 15156.

The H2S Trim configuration also integrates the advanced PWC CARTRIDGE™, which makes field servicing our valves faster, easier, and more reliable. The PWC CARTRIDGE™ valve’s unique floating ball and spring-loaded seat design forces pressure and flow through the seat, not around its exterior. This eliminates unreliable single direction seat seals, erosion and fouling/binding frequently seen in competitive designs.

The floating vented ball and double floating seats in the PWC CARTRIDGE™ guarantee differential pressure by acting only across the downstream side of the ball and seat to minimize the load, prevent distortion of the ball and protect seat support arms. These features, combined with a proprietary stem bearing, reduce the torque required to operate the valve by 50% compared to other designs.

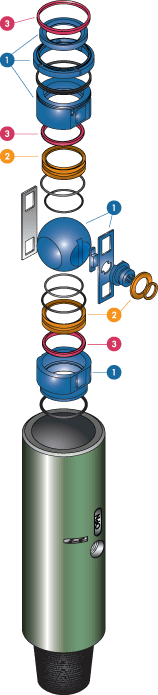

(1) 17-4PH (UNSS17400): precipitation-hardening stainless-steel in HH 1150 condition has been successfully used for mildly sour environments. According to NACE MR0175, 17-4PH is acceptable for valve components other than the body and bonnet, provided that the partial pressure of H2S does not exceed 0.5 psi.

Given that the valves are only “H2S trim,” they should not be used in severely sour conditions and that restriction is immaterial in the HH1150 condition.

(2) Tough Met AT110 (UNS C72900): a copper-nickel-tin alloy designed for use in applications demanding wear resistance, high-bearing performance, and resistance to saltwater corrosion. NACE MR0175 indicates that copper alloys may be used without restriction in sour service conditions.

(3) Alloy X-750: a precipitation-hardened, nickel-chromium alloy specifically approved for springs by NACE MR0175 at hardness values up to 50HRC. It is a good alternative to 17-7H for retaining rings.

M&M’s API Q-1 Quality Management System provides full traceability. Drillpipe threads conform to API 7-1. Each valve is provided with material certificates, test reports and Certificate of Conformance.

The PWC Cartridge™ has patent protected technology.
